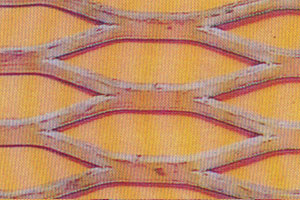

| ▣ STANDARD
형 |
|
|
|
| /
METAL,LATH용 / 시설물의 안전보호용 / BUS의 엔진-카바 /
외관 장식용 |
|
| 제품NO. EXP-101 |
제품NO. EXP-102 |
|
|

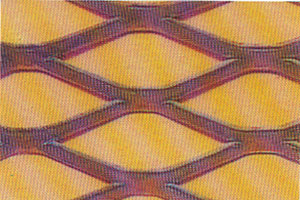

| ▣ GRATING
형 |
|
|
|
| /
검사통로 및 계단 / 구조물 설치용 / P.S.P 대용 / 무늬강판
및 BAR GRATING대용 |
|
| 제품NO. EXP-103 |
제품NO. EXP-104 |
|
|
|
 |
|
| MODEL |
MESH |
STAND |
㎡ |
3'×6' |
4'×8' |
JIS규격 |
| SWM |
LWM |
T(m/m) |
W(m/m) |
kg |
kg |
kg |
|
SS 132
SS 133 |
12.7
12 |
30.5
30.5 |
1.6
2.3 |
2.0
3.0 |
4.19
9.03 |
7.0
15.1 |
12.4
26.8 |
XS-32
XS-33 |
|
SS 241
SS 242
SS 243 |
23.4
22
22 |
50.8
〃
〃 |
1.6
2.3
3.2 |
2.0
2.5
3.5 |
2.28
4.10
8.0 |
3.81
6.86
13.4 |
6.78
12.2
23.8 |
XS-41
XS-42
XS-43 |
|
|
|
|
|
 |
|
| MODEL |
MESH |
STAND |
㎡ |
3'×6' |
4'×8' |
JIS규격 |
| SWM |
LWM |
T(m/m) |
W(m/m) |
kg |
kg |
kg |
|
SG 362
SG363
SG 364
|
35.9
36
36 |
101.6
〃
〃 |
4.5
6.0
6.0 |
7.0
7.0
9.0
|
13.7
18.3
23.6 |
22.9
30.6
39.5 |
40.7
54.4
70.1
|
XG-21
XG-22
XG-23 |
|
SG 342-1
SG 342-2
SG 342-3
|
33.9
34
34 |
135.4
〃
〃 |
4.5
6.0
6.0 |
7.0
7.0
9.0 |
14.5
19.4
24.9 |
24.2
32.4
41.6 |
43.1
57.7
74.0 |
XG-11
XG-12
XG-13 |
|
|
|
|
 |
|
| MODEL |
MESH |
STAND |
㎡ |
3'×6' |
4'×8' |
JIS규격 |
| SWM |
LWM |
T(m/m) |
W(m/m) |
kg |
kg |
kg |
|
SG 341
SG 342
SG 343
|
33.9
34
34 |
76.2
〃
〃 |
2.3
3.2
4.5 |
3.0
4.0
5.0
|
3.19
5.
10.4 |
5.33
9.88
17.4 |
9.48
17.6
30.9
|
XS-61
XS-62
XS-63 |
|
MODEL
|
MESH |
STAND |
㎡ |
6'×6' |
6'×12' |
XS-71
XS-72
XS-73 |
|
SG 342-1
SG 342-2
SG 342-3
|
50.8
50
50 |
152.4
〃
〃 |
2.3
3.2
4.5 |
3.5
4.0
5.0 |
2.53
4.02
7.06 |
8.45
13.4
23.6 |
16.9
26.9
47.2 |
|
|
|
|
